Standard Features Images

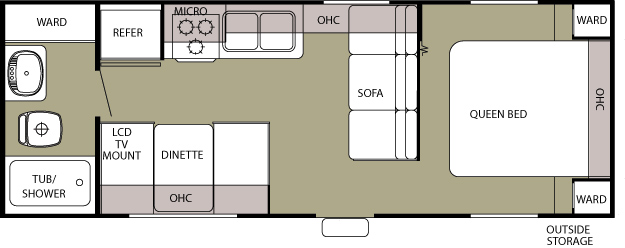

This proven floor plan is great for most all RV'er! The Queen Island bed is always a popular request. Add the side entrance ramp option and turn this unit into a small load Toy Hauler.
|
25RB Specifications | | Dry Hitch Weight | 474 lb. (215 kg ) |
| Unloaded Vehicle Weight | 4,273 lb. (1,938 kg ) |
| Gross Vehicle Weight Rating (GVWR) | 7,474 lb. (3,390 kg ) |
| Cargo Carrying Capacity | 3,201 lb. (1,452 kg ) |
| Exterior Length | 27 ft. 3 in. (8.3 m) |
| Exterior Height | 10 ft. 5 in. (3.2 m) |
| Exterior Width | 97 in. (2.5 m) |
| Fresh Water Capacity | 50 gal. (189 L) |
| Gray Water Capacity | 41 gal. (155 L) |
| Black Water Capacity | 31 gal. (117 L) |
| Awning Size | 15 ft. (4.6 m) |
|
Top
Standard Features for the 25RB
|
Standard Features
BEDROOM
- Bedspreads
- Wardrobe Closets
- Dual Bulb Reading Lights
- Two Large Overhead Cabinet Storage
- Night Stands Each Side of Bed
KITCHEN / LIVING
- High Rise Faucet
- Self Edged Counter Tops and Tabletops
- Large Storage Doors
- Granite Looking Counter Tops
- Breakfast Bar ( Selected Floorplans)
- Monitor Panel
- Roller glided drawers
- Double Door Refrigerator
SLIDE OUT
- Skylights Over Dinette and Sofa with Shade (Selected Floorplans)
- 40" Dinette ( Selected Floorplans)
- One Piece Slide Out Side Walls
- U- Shaped Dinette with Removable Table on All Bunkhouse Models (Selected Floorplans)
- Decorative Cherry Paneling on all Slide Out End Walls
CABINETS
- Cherry Stained Cabinets
- Large Overhead Cabinets
- High Grade Cabinet Handles
- Rounded Styled Cabinets
- Upgrade Cabinet Hardware
- Hidden Switches cabinet with Dry Erase Board front
BATHROOM
- Acrylic Bath Sinks (Large)
- Shower Curtain
- Linoleum in Bath Area
- Double Framed Tub Bases
- Medicine Cabinet
| APPLIANCES
- High Output Cook Top
- Carousel High Output Microwave
- Digital TV Antenna with Power Booster
- 13.5 Air Conditioner
- Water Heater By Pass
- AM/FM/CD/DVD Stereo with iPod Hookup.
- LCD Bracket and TV Ready
- Six Gallon Re-ingniting Turbo Water Heater
EXTERIOR
- Radius Luggage Doors
- 20 lb. LP Bottles w/Cover (TT)
- Awning Drip Rail and Down Spouts
- Patio Awning
- Large Radius Storage Compartments
- One Piece Rubber Roof
- Upgrade Graphics
- Two- Toned Exterior Metal
- Outside Stereo Speakers
- Radius Entry Door
- Cable Hook up
- Outside Outlet
- Radius, Double Drop Step
CONSTRUCTION FEATURES
- 3/8" Walkable Roof Decking
- Radius Truss Roof Rafters
- 5/8" Tongue and Groove Plywood Floor
- 2" x 3" Floor Joists
- Powder Coated, Rust Resistant Frame
- R7 Fiberglass Insulation
- Linoleum Front to Back
- Roto Cast (Seamless) Holding Tanks
- 12" on Average Side Wall Stud
- Galvanized Steel High Wind Bands
|
Top
Picture Gallery of the 25RB
Top
